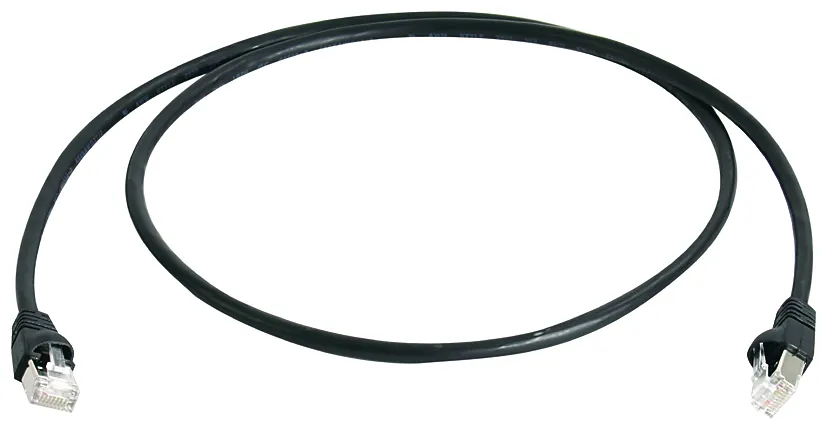

Description of the Series/Product Category
Notice: The following information refer to the series/product category as a whole. Please see the specific datasheet for specific technical information of a particular product.
Performance characteristics
pin assignment acc. to EIA/TIA 568B
360 degrees completely surround plug shielding (shielded cable types)
flexible and strain relieved
moulded strain relief boot
Mechanical attributes
| Cable structure |
Li02YSCH 4x2xAWG 27/7 PiMF |
| Jacket diameter |
5.8 mm (±0.2 mm) |
| Life (mating cycles RJ45, RJ12, RJ11) |
≥ 750 |
| Stranded wire |
AWG 27 (7/0.14 mm) |
| Insulation |
PE, Ø 1.02 mm (±0.05 mm) |
| Pair shielding |
Al-foil, outside conducting |
| Overall shielding |
tin plated copper braid |
Thermal and climatic attributes
| UL |
E244889 |
| flame-retardant test |
IEC 60332-1 |
| Operating temperature in °C |
-40°C to 75°C |
Elecrical attributes
| PoE acc to IEEE 802.3at |
Adequate for Power over Ethernet |
| PoE according to IEEE802.3af |
Adequate for 4 Pair Power over Ethernet |
| Current carrying capacity at 50°C |
1 A |
Transmission properties
| 10 Gigabit Ethernet acc. to IEEE 802.3an |
Adequate for 10 Gigabit Ethernet |
Norms
| Surge voltage insulation test |
IEC 60664-1 |
| Connectors |
IEC 60603-7-51 |
